Description

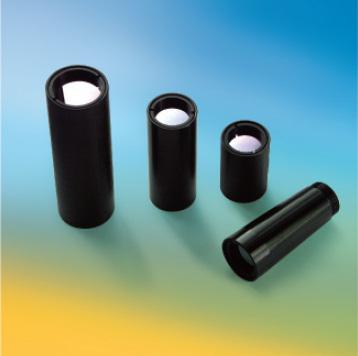

Laser beam expander is designed to either decrease he laser’s beam spot size at large distances or roduce a larger collimated output laser beam.
Applications
●Laser Cutting
●Laser Welding
●Laser Marking
Benefits
●High damage threshold
●High transmission
Products
Expansion | Clear Aperture | Diameter(mm) | Wavelength | Material |
1.5X | Φ10 | Φ12 | 10.6μm | GaAs |
2.5X | Φ10 | Φ19 | 10.6μm | GaAs |
3.5X | Φ10 | Φ22 | 10.6μm | GaAs |
4X | Φ10 | Φ24 | 10.6μm | GaAs |
5X | Φ10 | Φ26 | 10.6μm | GaAs |
10X | Φ10 | Φ38 | 10.6μm | GaAs |
2X | Φ10 | Φ18 | 10.6μm | ZnSe |
4X | Φ10 | Φ24 | 10.6μm | ZnSe |
8X | Φ10 | Φ29 | 10.6μm | ZnSe |
2X | Φ10 | Φ14 | 1064nm | Optical Glass |
5X | Φ10 | Φ26 | 1064nm | Optical Glass |
3X | Φ10 | Φ18 | 532nm | Optical Glass |
4X | Φ10 | Φ22 | 532nm | Optical Glass |
