Handheld Laser Welding Machine
Description: DaHeng Handheld Laser Welding System enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thickness than MIG or TIG with minimal distortion, undercut or burn-through. Besides welding function, the system also has cleaning function.
Model: DH-HLW Series
Laser Power:1000W-2000W
Certification: CE
Application: Staircase elevator, stainless steel door and window guardrail,
Cabinet kitchen, shelf, oven, stainless steel furniture and other industries.
Handheld Laser Welding Machine Parameter | |
Wavelength | 1060-1080nm |
Laser Power | 1000W, 1500W, 2000W |
Frequency | 20-5KHz |
Cooling method | Water cooling |
High Speed | Up to 4X Faster than tradition methods, increased productivity for lower costs-per-part |
High Quality | Consistent welding of thick, thin and reflective metals without distortion, undercut or burn-through-minimal heat affected zone |
Wobble Welding | Up to 5mm of additional weld width |
Weld Thickness | Stainless Steel, Carbon Steel, Aluminum: Up to 4mm |
Dimension L×W×H | 850×540×940mm |

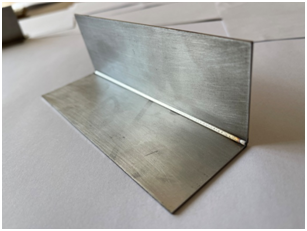

Welding Cases
Handheld Laser Welding Machine Video
Download Brochure
Daheng Handheld laser welding system.pdf
