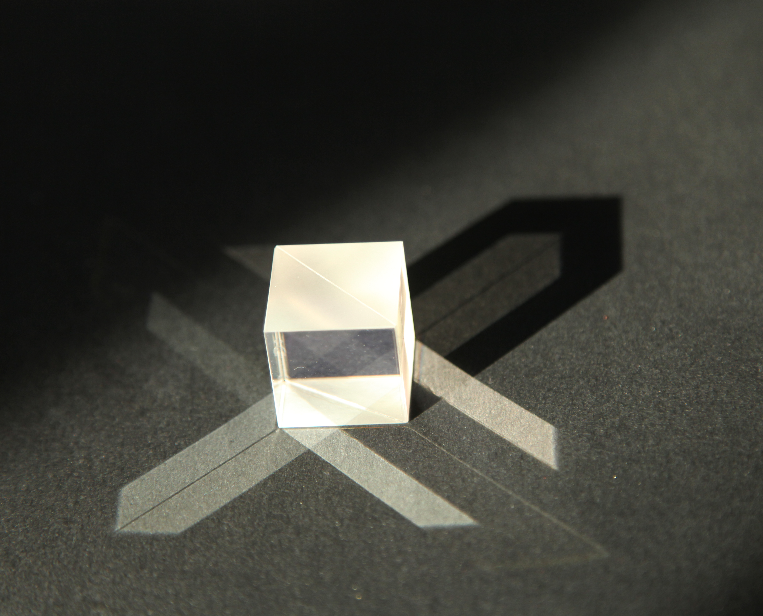

Non-polarizing beamsplitter

Release time:2018-03-07
Share to:

With the low polarization dependence of themetallic/ dielectric hybrid coating, non-polarizing beamsplitter allows the transmission and reflection for S and P polarization light to be with in 6% of each other.


Applications

●Medical Imaging

●Test Equipment

Benefits

●Material : BK7, Fused Silica

●Flatness: λ/4

●Beam Deviation: <3’

●Surface quality: 60-40

●Coating: T/R=48/48±5%, ITs-TpI<5%, IRs-RpI<5%

  AOI 0°

Products


Wavelength(nm)

T/R

Size 12.7x12.7x12.7mm

Size 25.4x25.4x25.4mm

488

T/R=48/48±5% ITs-TpI<5%  IRs-RpI<5%

NPBS-488-01

NPBS-488-02

532

T/R=48/48±5% ITs-TpI<5%  IRs-RpI<5%

NPBS-532-01

NPBS-532-02

808

T/R=48/48±5% ITs-TpI<5%  IRs-RpI<5%

NPBS-808-01

NPBS-808-02

450-650

T/R=48/48±5% ITs-TpI<5%  IRs-RpI<5%

NPBS-VIS-01

NPBS-VIS-02

650-900

T/R=48/48±5% ITs-TpI<5%  IRs-RpI<5%

NPBS-650-900-01

NPBS-650-900-02

900-1200

T/R=48/48±5% ITs-TpI<5%  IRs-RpI<5%

NPBS-900-1200-01

NPBS-900-1200-02

1200-1600

T/R=48/48±5% ITs-TpI<5%  IRs-RpI<5%

NPBS-1200-1600-01

NPBS-1200-1600-02


Non-Polarizing Beamsplitter.pdf
