Biochemistry filter

Release time:2018-03-07
Share to:

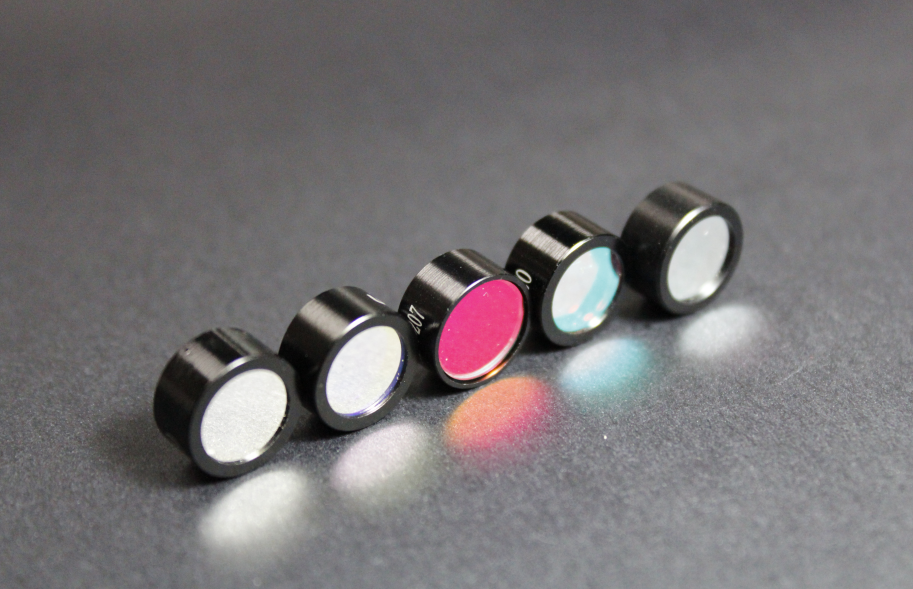

Daheng standard biomedical filters have been widely applied for biochemical analyzers, They are all with excellent out-of-band blocking which can provide high signal-to-noise. And the biomedical filters are with extraordinary hardness, abrasion resistance, which means nearly unlimited lifetime.


Applications

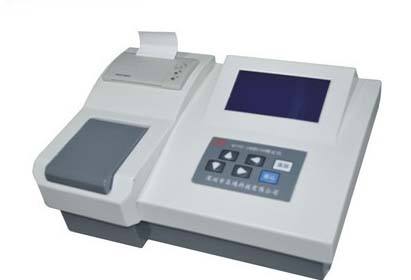

● Biochemical Analyzer,
● Microplate reader
● Biological and chemical analysis instrument

Benefits

● No wavelength drift
● High transmission
●Deep blocking

Products

● Diameter:8mm 10mm 12.7mm 15mm
● Thickness:<6mm
● The typical wavelength: 214、220 、254 、275 、280 、、340 、360、 380 、395 、405 、450、 470 492、  510 、546 、578 、589、 590、 600 、620 、630、650、700 nm
● Center wavelength tolerance: + / - 2 nm
● Half the peak bandwidth: 10 + / - 2 nm
● Peak transmittance: 20% 85% (related to wavelength, and instrument types)
● Surface quality: 80-50
● Background: >OD4@200-3000nm


Biochemical Filter.pdf
